Electric Hydraulic Power Unit Cylinder Performance Leakage Pressure Test 40-120L/Min

Name: Electric Hydraulic Power Unit Cylinder Performance Leakage Pressure Test 40120LMin
Brand: Hengli
Price: 1 USD

Brand Name : Hengli

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 50 set / 30 days

Delivery Time : 5-30 days upon order quantity

Packaging Details : Wooden packing

Flow : 0~400L/min

Pressure : 0～50MPa

Contact Now

Hydraulic Cylinder Performance Test Bench

Hydraulic cylinder test bench can be used to test various cylinders with flow range of 40-120L/min, we can test min. starting pressure, motion without load detection, stroke detection, cushion performance, leakage test and pressure test.

Electric Hydraulic Power Unit Cylinder Performance Leakage Pressure Test 40-120L/Min

a. Oil source

Electric Hydraulic Power Unit Cylinder Performance Leakage Pressure Test 40-120L/Min

b. Test bench

Electric Hydraulic Power Unit Cylinder Performance Leakage Pressure Test 40-120L/Min

c. Operation cabinet

Detection and control

	Item	Object	Range	Precision
Test	Flow	Cylinder flow	0~400L/min	±0.5%
	Leakage	Internal leakage	0.00～50cc/min (cumulative measurement)	±0.005 cc
	Leakage	Internal leakage	50~2000cc/min	±0.005 cc
	Pressure	Cylinder port pressure	0～50MPa	±0.01MPa (system)
	Pressure	Pump outlet pressure	0～50MPa	±0.01MPa (system)
Control	Flow	Cylinder inlet flow	0～230L/min	±0.5 L/min
	Pressure	Low pressure	0.1～7MPa	±0.01MPa
		High pressure	2～42MPa	±0.01MPa
		Booster pressure	31.2～52MPa	±0.01MPa

Specification

Circuit	Maximum flow (L/min)	Maximum pressure(MPa)
Main circuit	10-230	Low pressure 0.1~7, high pressure 2〜35
External pilot	33	7
Leakage circuit	24	35
Control circuit	18.3	7
Loop circuit	94	<0.5
Recovery circuit	30	<0.5
Booster cylinder	-	62

Test interface

Electric Hydraulic Power Unit Cylinder Performance Leakage Pressure Test 40-120L/Min

PLC interface

Electric Hydraulic Power Unit Cylinder Performance Leakage Pressure Test 40-120L/Min

PC interface

Test curve

Electric Hydraulic Power Unit Cylinder Performance Leakage Pressure Test 40-120L/Min

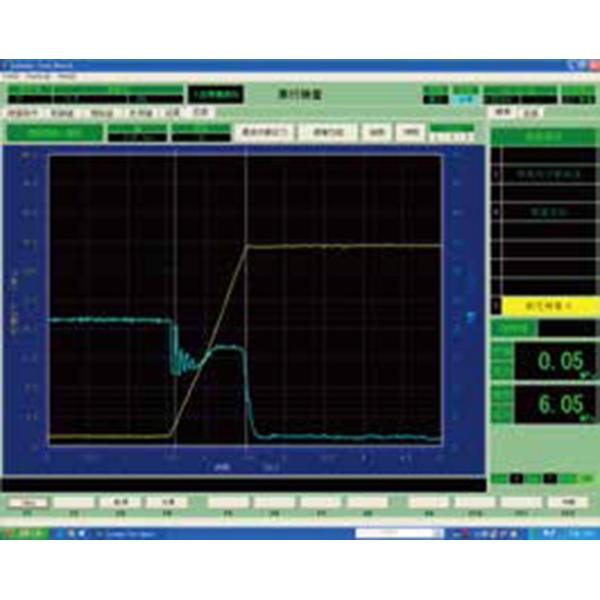

Buffer test

Electric Hydraulic Power Unit Cylinder Performance Leakage Pressure Test 40-120L/Min

SOL Setting interface
